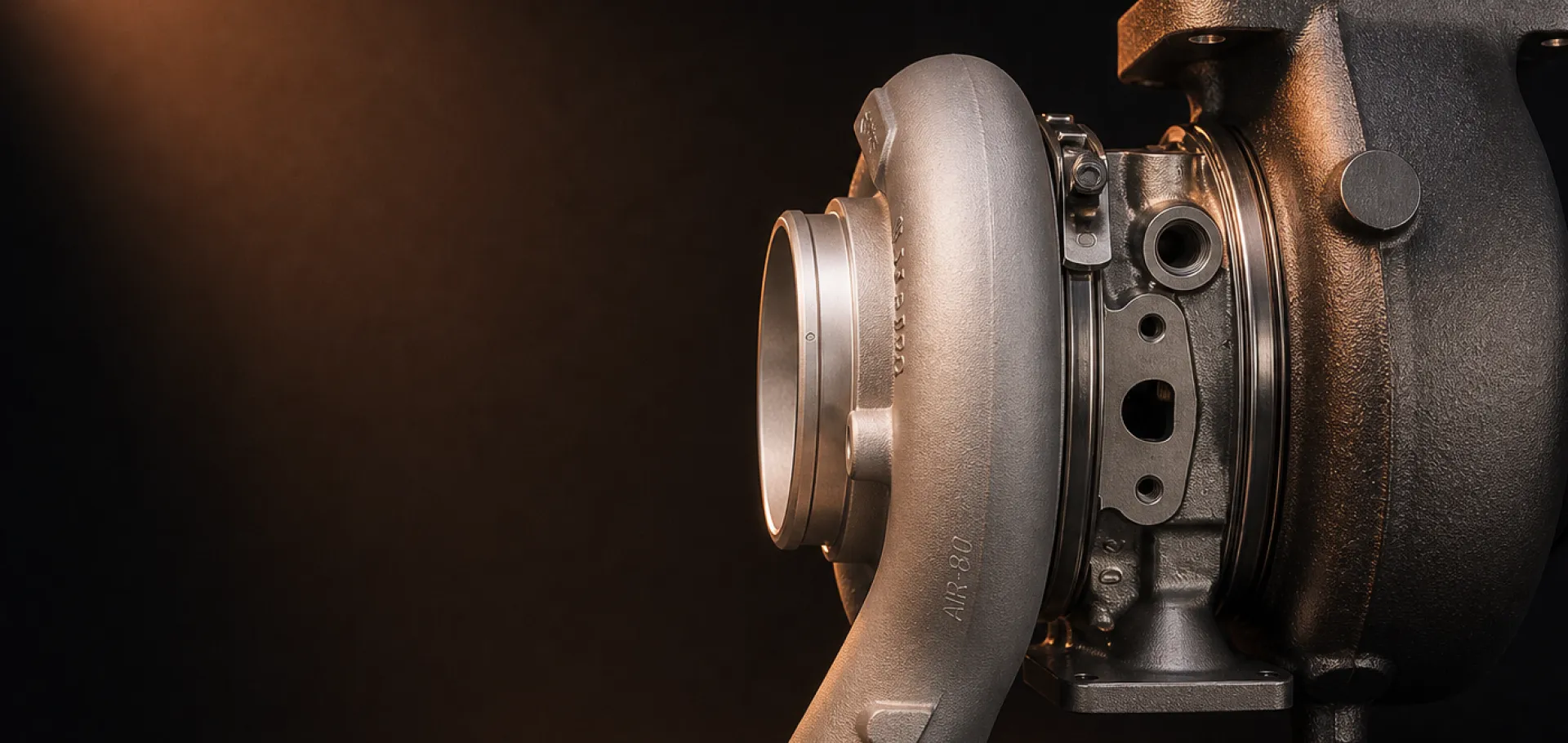

Brand new Caterpillar diesel turbocharger supplied by UPAPSI

Caterpillar Turbocharger

Brand New Replacement Turbochargers for Caterpillar Diesel Engines

US Perfect Auto supplies brand new replacement turbochargers for the full range of Caterpillar diesel engines, including the C7, C12, C13, C15, C16, and the 3406B, 3406C and 3406E. These engines run in on-highway trucks, excavators, wheel loaders, gensets and other industrial equipment, so the correct turbo depends on the exact engine, the serial prefix, and whether the setup is single or two-stage. Every unit ships built to OEM-spec, with the right compressor and turbine wheels and housing A/R for the application. We match the part number against your engine serial before it leaves the warehouse, so it bolts straight on. We supply repair shops, fleets and distributors across North America with single units and bulk orders. To pin down the right unit, use our fitment guide or send your numbers to our team.

  • 100% Brand New
  • OEM-Spec Quality
  • Fully Certified
  • US Stock, Fast Dispatch
  • Direct-Fit Replacement
  • Exact Part-Number Match
  • No Core Charge
  • 1-Year Warranty

Caterpillar Turbocharger Application Chart

Find the turbo model and OE part numbers for your Caterpillar engine. Each row links to the matching new replacement turbocharger.

ApplicationTurbo ModelOE / Interchange No.
2005-2009 Caterpillar C7 7.2LB2G175273, 12709880200View Turbo
1998-2001 Caterpillar 3406B 15.8LGT5008BS0R7924, 196-5952View Turbo
Caterpillar C13 AcertGTA4088S752538-0009, 10R2862View Turbo
Cat C15 AcertGTA4294BS10R1887, 10R-1887, 10R2407, 10R-2407View Turbo
Caterpillar C13 AcertGTA4702B743279-5004S, 10R2027View Turbo
Caterpillar C15 AcertGTA5518B2321811, 10R1888View Turbo
2003-2004 Caterpillar 3126 C7 7.0LS200AG178482, 174201View Turbo
Caterpillar 3406 Engine 1980-2013S410G / GTA470201BS / GT4702178731, 199114, 0R6055, 0R6167View Turbo
Caterpillar 3406E C15 C16 14.64LS410G / GTA470201BS / GT4702177148, 169227, 170354, 704604-0007View Turbo
Caterpillar 3406B C15 C16S410SX14969880001, 14969700001, 1496-970-0001, 1496-988-0001View Turbo
Caterpillar 3406B C15 C16S410SX / S47814969880000, 0R6053View Turbo
Caterpillar 3406B 3406C 14.6LS4DS025199119, 178063, 0R6053, 0R5733View Turbo

Fitment can vary by engine serial number and rating. Confirm against the part number on your old turbo's nameplate, or send it to us and we will check the match.

What Is a Caterpillar Turbocharger?

A Caterpillar turbocharger is the exhaust-driven turbo that supplies boost air to Cat diesel engines, from the 3126 and C7 in medium-duty trucks to the 3406, C13 and C15 in heavy trucks and equipment. Cat has used turbos from several makers, so the turbo model and part number on the nameplate decide the replacement, not the engine name alone.

01

Single-Turbo 3406 and C15

Pre-ACERT 3406B, 3406E, C15 and C16 engines run a single turbo, such as the S410G, the S410SX and S478, or the GT5008BS, matched by wheel size and turbine A/R to the engine rating.

02

Twin-Turbo ACERT Engines

C13 and C15 ACERT engines use a high- and low-pressure turbo pair: the GTA4088S and GTA4702B on the C13, and the GTA4294BS and GTA5518B on the C15. Each stage has its own part number.

03

Medium-Duty 3126 and C7

The 3126 and C7 use smaller turbos, such as the S200AG on 2003–2004 engines and the B2G on 2005–2009 C7 engines.

Why Choose Us

20+ years focusing on quality heavy-duty truck turbochargers for North America, making turbo replacement fast, simple and reliable.

Built entirely from new parts, from the CHRA and wheels to the housings. No core charge and nothing to return.

Each turbo is dynamically balanced, flow-tested and leak-checked before shipping, so it bolts straight on and delivers full boost.

Send us your part numbers and quantities for a quote, with volume pricing on multi-unit orders.

In-stock orders ship within 24 hours on business days and reach most US addresses in 2–5 days.

A one-year unlimited-mileage warranty, 30-day returns on unopened units, and a US team for fitment and technical questions.

Order a single unit or a full pallet. Distributors can add white-label packaging under their own brand.

US Perfect Auto technician holding a replacement turbocharger

FAQ

For most heavy-duty Cat engines the turbo itself runs on the engine and the setup. A single-turbo 3406E replacement costs less than a C15 Acert two-stage set, and labor varies by truck. What stays constant: a brand-new replacement carries no core deposit and no return freight, and it prices well below dealer. Send your part number or engine serial and we quote the exact unit from US stock.

Cat turbos are engine-specific and often serial-specific. Give us your engine serial number, the engine model, and the part number on your current turbo. We confirm the exact match before you order so the unit bolts straight on.

Not always. The C15 Acert uses a low-pressure and a high-pressure turbo. If only one has failed, you can replace just that side. Many shops do both when mileage is high since they wear at a similar rate. We supply either position.

All of our Cat turbos are brand new with 100% new components. There is no core charge and nothing to send back, unlike a remanufactured unit. Each is a direct-fit replacement built to OEM-spec with a one-year warranty.

Yes. The 3406B and 3406C are out of production and stock is thin, so we keep new replacements in the US for these older engines. That keeps a 3406 truck, genset or loader from sitting idle while you hunt a discontinued part.

Yes. Most of our customers are repair shops, fleets and parts distributors across the US, Canada and Mexico. We handle single units and bulk orders, with pricing built for resale and steady restock.

How Caterpillar Turbochargers Differ Across Engine Families

Caterpillar built diesels for almost every heavy application, and the turbo setup changes a lot from one family to the next. Knowing where your engine sits makes it easier to order the right unit the first time.

On-highway truck engines: 3406E, C15, C16

The long-haul workhorses. The 3406E and early C15 use a single turbo, while the C15 Acert moved to a two-stage twin-turbo setup to meet emissions while holding power. A 3406E turbo and a C15 Acert turbo are not interchangeable.

Mid-range engines: C7, C9, C12, C13

Used in medium trucks, buses and smaller equipment. Many run variable or wastegated single turbos. The C13 Acert, like the C15, can run a low-pressure and high-pressure pair depending on rating, so the serial prefix matters here too.

Older and industrial blocks: 3406B, 3406C, 3304, 3306

These power gensets, loaders, excavators and older trucks still in daily service. They run simple, robust single turbos with large non-gated housings suited to steady-RPM work. Parts are getting scarce, which is why owners look for quality new replacements rather than waiting on dealer stock.

Single vs two-stage: what to check before ordering

A two-stage Cat engine uses a smaller high-pressure turbo for low-end response and a larger low-pressure turbo for top-end airflow. Each position has its own part number and housing. Knowing only "C15" is not enough — the table shows what decides the part number.

EngineTurbo setupWhat decides the part number
3406B / 3406CSingle, non-gatedHousing A/R and engine rating
3406ESingleRating and year; many interchange numbers
C15 (pre-Acert)SingleEngine serial prefix
C15 AcertTwo-stage (LP + HP)Serial prefix (BXS/MXS/NXS/SDP) and turbo position
C13 AcertSingle or two-stageRating and serial prefix
C7 / C9Single, often VGT/wastegatedEngine model and emissions spec

When you give us the engine serial number and the number on your current turbo, we match all of this before the order ships.
